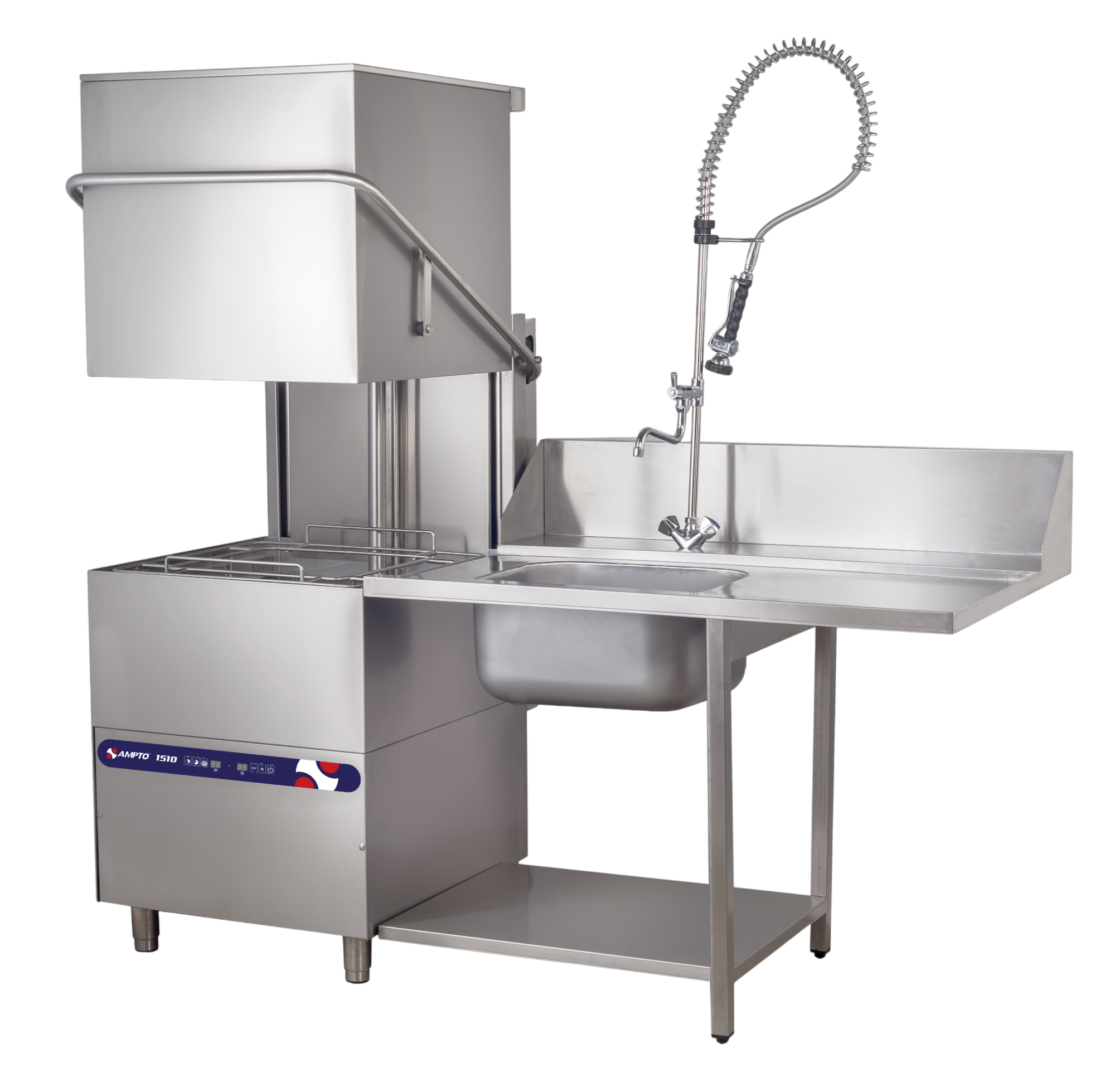

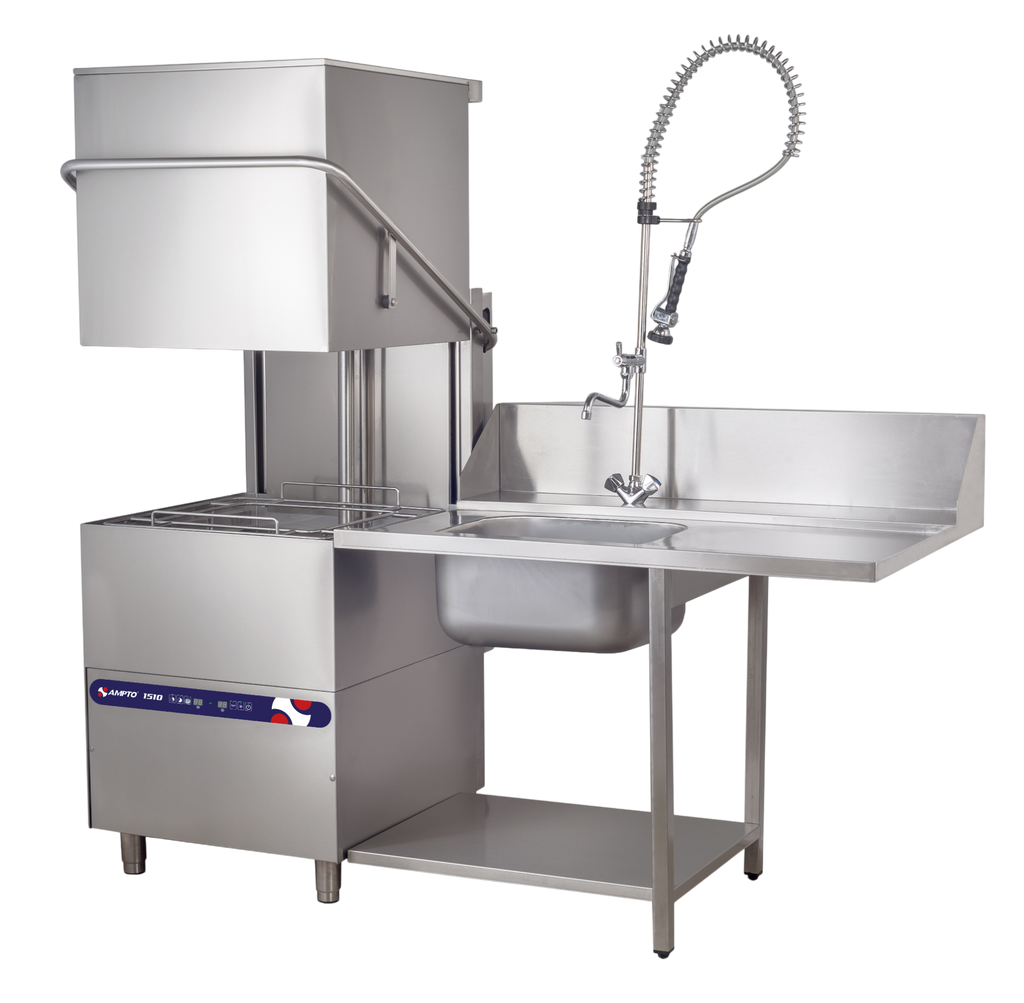

1510 Dishwasher, hood type, 34-5/8"W, high temperature, with 8.6kW booster heater, up to (30) racks per hour,

Dishwasher, hood type, 34-5/8"W, high temperature, with 8.6kW booster heater, up to (30) racks per hour, detergent & rise-aid pumps, front-mount digital controls, drain pump, (3) operating cycles, straight or corner installation, stainless steel exterior panels & interior, 1-1/2 HP, cETLus, ETL-Sanitation

Parts:
1. NSF certified indicators for wash temperature, rinse temperature and rinse pressure
2. 304 stainless steel body and handle, heavy duty & corrosion resistant
3. Upper and lower wash/rinse arms with high temperature cycles
4. 1 peg rack, 1 flat rack & 1 cutlery tray included

Features:
• Automatic Fill
• Double skin door
• Automatic drain pump
• Self-cleaning mode
• Built in booster heater
• Built in chemical pumps
• IP 44 washing pump
• Guarantee rinse temperature
• Self-diagnostic mode
• 3 washing programs available
• Easy access for maintenance
• Durable inox construction
• Standard pressure reducer valve (PRV)
• Standard back cover

PRODUCT SPECIFICATIONS

BASKET SIZE 20” x 20”/ 500 x 500 mm
POWER SUPPLY 208-240V / 60Hz / 1 Ph
POWER 10.5 kW
AMP 39 A
WASH PUMP MOTOR 1.5 HP

WATER CONNECTION
FLOW PRESSURE 20 psi ± 5
WATER CONSUMPTION / RACK 0.7 gal (2nd program)
WATER CONSUMPTION / HOUR 13.2 gph
WATER INLET CONNECTION 3/4”
DRAINING CONNECTION 1.2”

CAPACITY
CAPACITY Booster tank: 7.4L, Wash tank: 68L
HEATING ELEMENT Booster tank: 7.5 kW, Wash tank: 6 kW
RACK / HOUR (1ST PROGRAM) 28
RACK / HOUR (2ND PROGRAM) 19
RACK / HOUR (3RD PROGRAM) 14
WASH CYCLE 1 103 SEC
WASH CYCLE 2 223 SEC
WASH CYCLE 3 343 SEC
RINSE CYCLE 16 SEC

WORKING TEMPERATURE
WASHING 77 °C / 170.6 °F
RINSING 74 °C / 165.2 °F

 DIMENSIONS
DOOR CLEARANCE 16” / 400 mm
USEFUL DOOR OPENING 15.5” / 395 mm
NET DIMENSIONS (WDH) 30” x 36” x 57” / 751 x 920 x 1449 mm
(74” / 1882 mm open)

Plug and Wire (not included): Requires a certified electrician to install unit.

*Dish table do not include

* Water Pressure Regulator not included

NOTE:
Normal operation generates steam that may escape from the door.
Materials like wood, laminate etc. are unsuitable for areas exposed to
dishwasher steam and only stainless-steel surfaces is recommended
