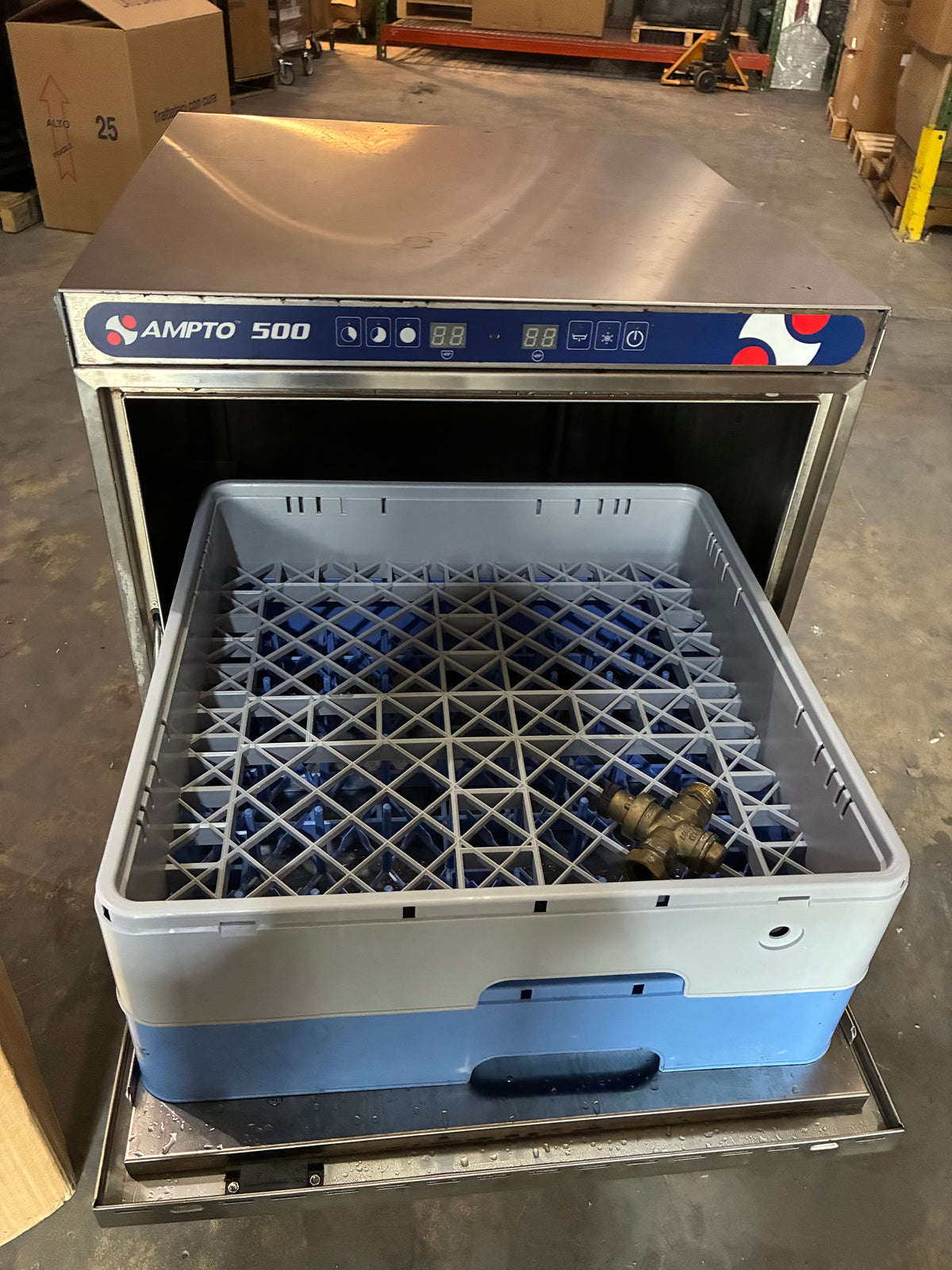

500 - USED Dishwasher Undercounter, door type, front loading, 23-5/8"W, (20/30 or 60) racks/hour capacity, high tem (Copy)

Dishwasher Undercounter, door type, front loading,  23-5/8"W, (20/30 or 60) racks/hour capacity, high temp, built-in detergent & rinse aid dispensers, digital controls, built-in 3.6 to 6.6 kW booster, pump drain, (3) operating cycles, 9.24 gal tank capacity, 1.58 gal boiler capacity, stainless steel exterior panels & interior, 3/4 HP, cETLus, ETL-Sanitation

• Rinse with fresh water
• Guarantee rinse temperature
• Connection to minimum 55°C water supply

 Parts:
1. NSF certified indicators for wash temperature, rinse temperature and rinse pressure
2. 304 stainless steel body and handle, heavy duty & corrosion resistant

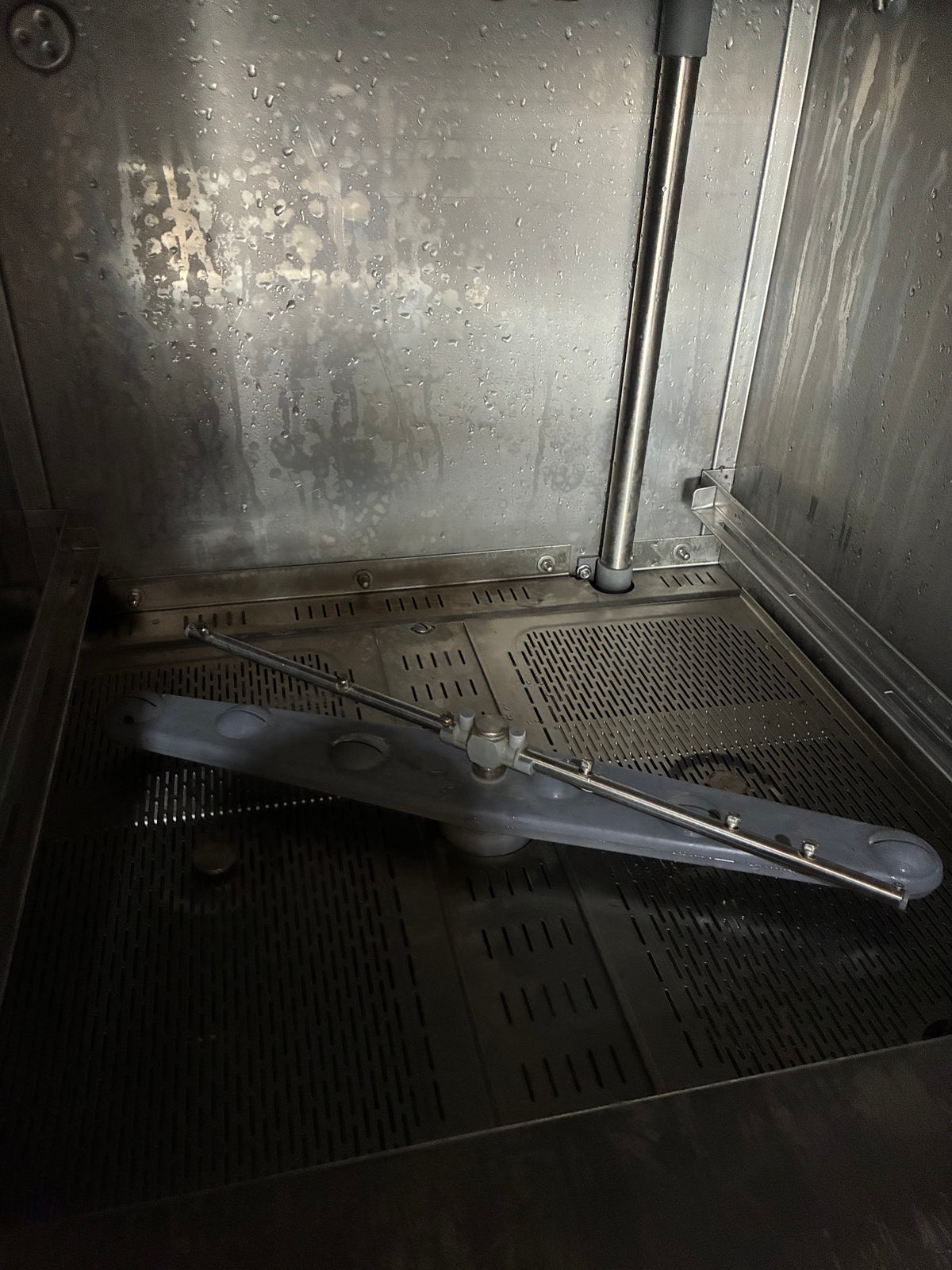

3. Upper and lower wash/rinse arms with high temperature cycles
4. 1 peg rack, 1 flat rack & 1 cutlery tray included

PRODUCT SPECIFICATIONS
BASKET SIZE 20” x 20”/ 500 x 500 mm
POWER SUPPLY 208-240V / 60Hz / 1 Ph
POWER 3.6 kW
AMP 16 A
WASH PUMP MOTOR 0.75 HP

WATER CONNECTION
FLOW PRESSURE 20 psi ± 5
WATER CONSUMPTION / RACK 0.58 gal (2nd program)
WATER CONSUMPTION / HOUR 11.0 gph
WATER INLET CONNECTION 3/4”
DRAINING CONNECTION 1.0”

CAPACITY
CAPACITY Booster tank: 6L, Wash tank: 35L
HEATING ELEMENT Booster tank: 3 kW, Wash tank: 2.8 kW
RACK / HOUR (1ST PROGRAM) 28
RACK / HOUR (2ND PROGRAM) 19
RACK / HOUR (3RD PROGRAM) 14
WASH CYCLE 1 103 sec
WASH CYCLE 2 223 sec
WASH CYCLE 3 343 sec
RINSE CYCLE 16 sec

WORKING TEMPERATURE
WASHING 78 °C / 172.4 °F
RINSING 78 °C / 172.4 °F

DIMENSIONS
DOOR CLEARANCE 14”/ 360 mm
USEFUL DOOR OPENING 12.8” / 325 mm
NET DIMENSIONS (WDH) 22.5” x 24” x 33” / 573 x 617 x 836 mm
( 38” / 966 mm with door open)

* Plug and Wire (not included): Requires a certified electrician to install unit.

* Water Pressure Regulator not included

NOTE: Normal operation generates steam that may escape from the door. Materials like wood, laminate etc. are unsuitable for areas exposed to dishwasher steam and only stainless-steel surfaces is recommended.

🔧 Certified Pre-Owned Equipment — Technical Service Report

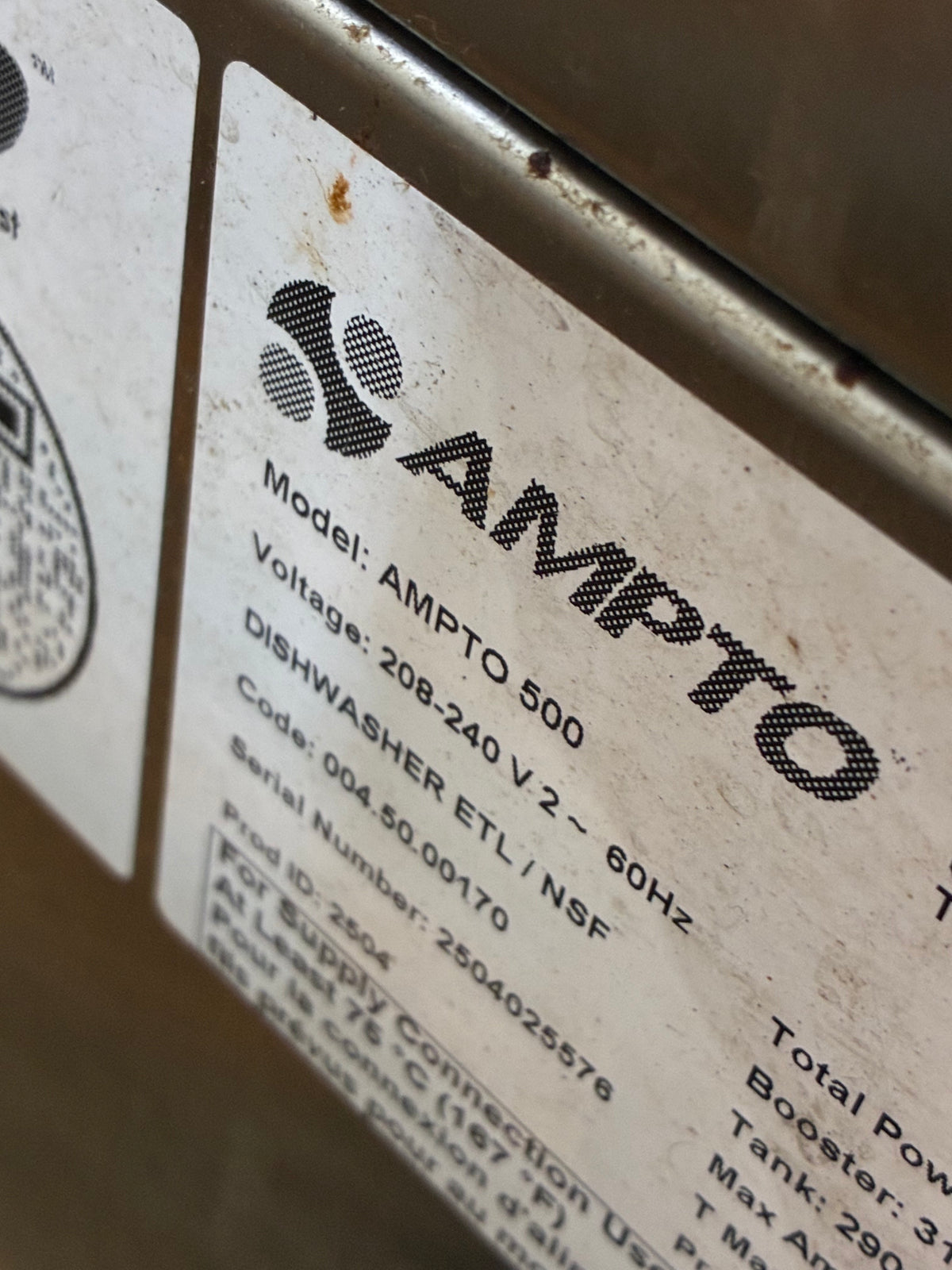

Equipment: AMPTO 500

Serial Number: 2504025576

MID: 10062712722

✅ What Was Done

This unit was fully inspected and serviced by our qualified technicians. The following repairs were performed:

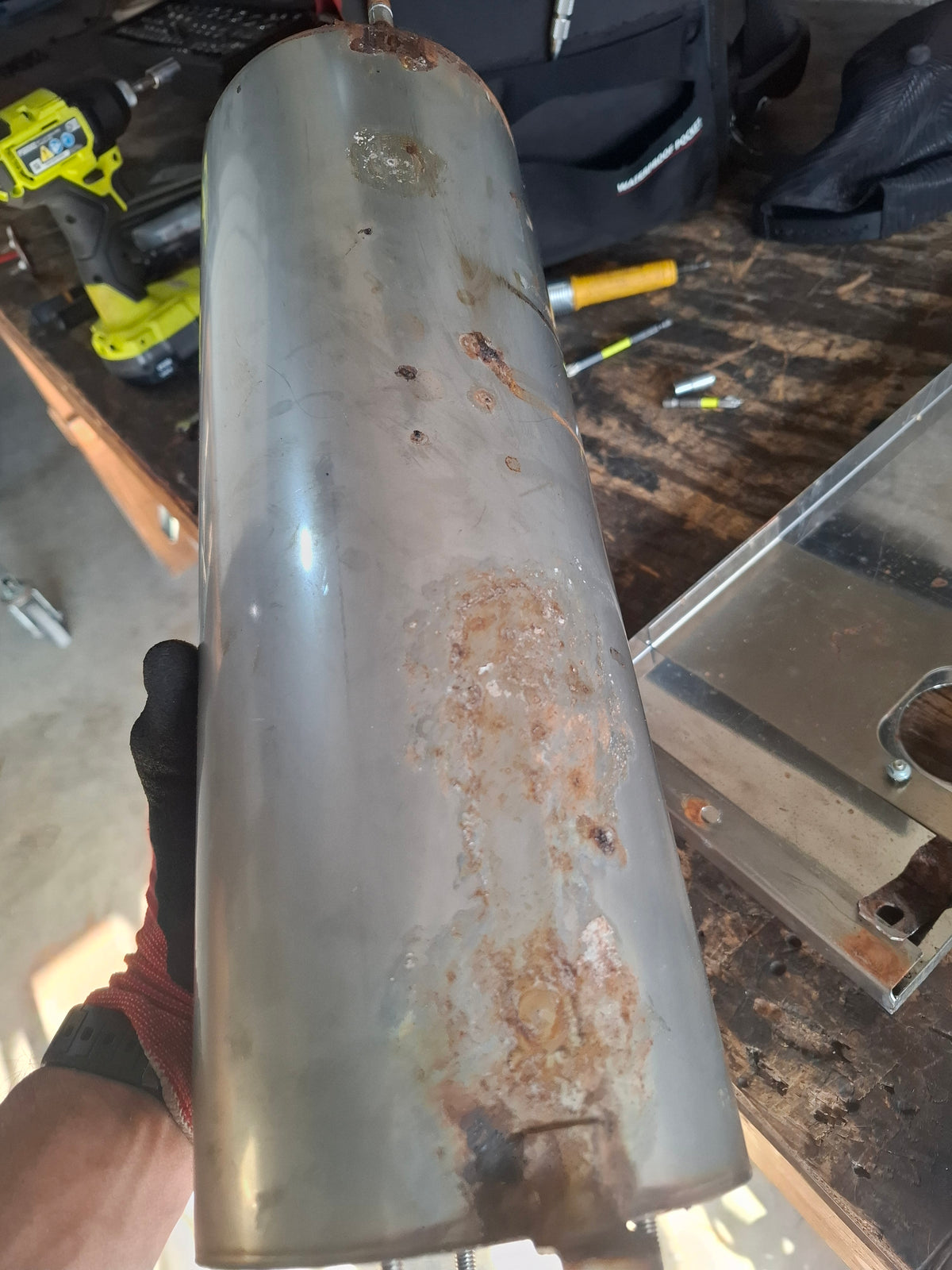

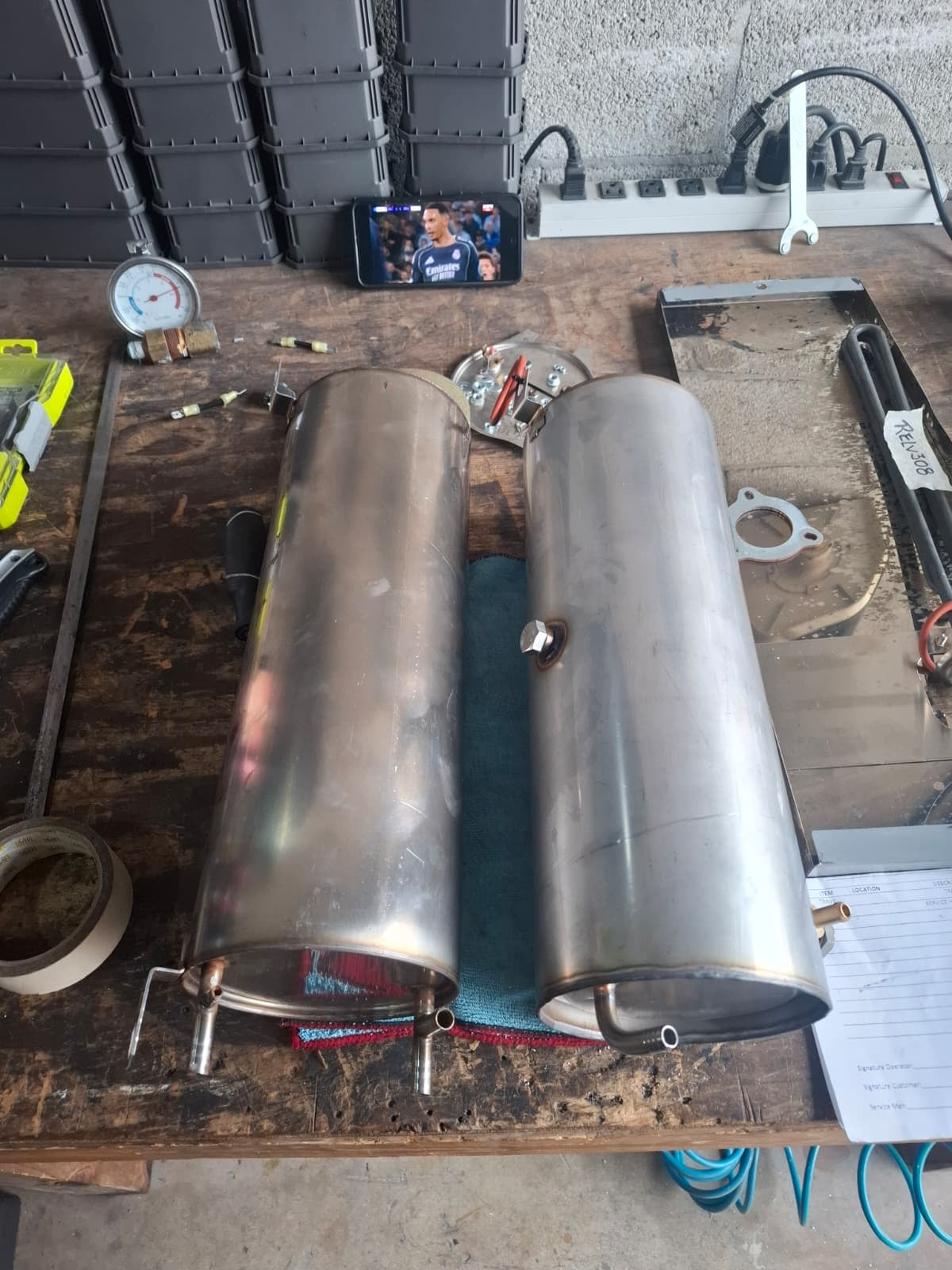

• Boiler replacement — The original boiler showed corrosion and porosity. It was replaced with a brand-new OEM component.
• Water pressure gauge replacement — The pressure gauge was replaced with a new original part to ensure accurate readings and safe operation.

🔩 100% Original Parts

All components used in this repair are 100% genuine OEM parts, sourced directly from the manufacturer. No aftermarket or third-party parts were used.

🧪 Tested & Verified

After the repair, the unit was fully tested and verified by AMPTO's certified service technicians. The machine operated correctly during all post-repair functional tests and is confirmed ready for use.

🛡️ 30-Day Parts Warranty

This unit comes with a 30-day parts warranty, effective from the date of invoice. The warranty covers the replaced components listed above.

This unit is sold as a certified pre-owned, professionally repaired machine. It has been inspected, repaired with original parts, and tested by qualified technicians at AMPTO, INC.

📧 For service inquiries: service@ampto.com | For parts: parts@ampto.com
